LTM2883-Slide9 Linear

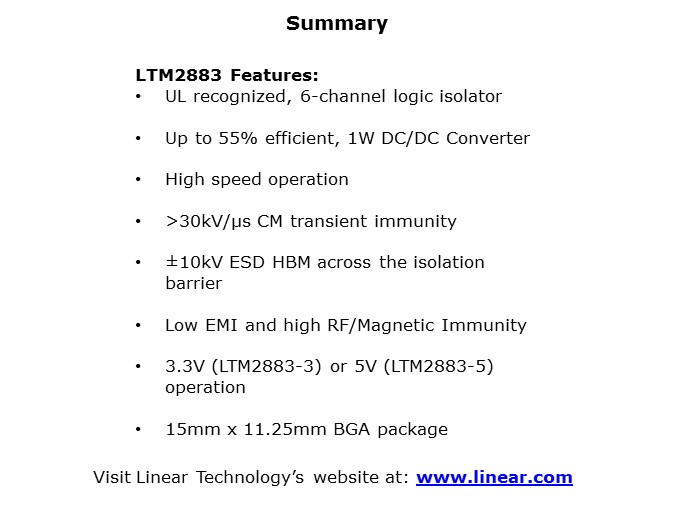

In summary, the LTM2883 is a device that has unique features and benefits that will help isolate communication busses and provide isolated components with power. It is a 6-channel µModule® logic isolator that protects against large ground-to-ground differentials. The –S version isolates a digital or SPI bus, while the –I version isolates I²C bus. This highly integrated solution combines a 2,500VRMS galvanic isolation barrier and all necessary power components into a compact, surface mount BGA package. For more information on the device, including the datasheet and samples, visit Linear Technology’s website at www.linear.com.

PTM Published on: 2012-12-10
