LTM2883-Slide8

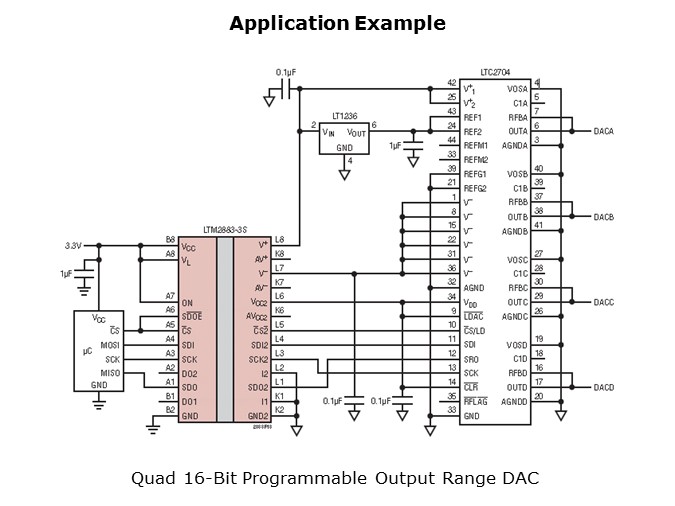

Shown on this slide is the LTM2883-S in a quad 16-bit programmable output range DAC application. The LTC2704 quad DAC and LT1236 reference are both being powered off the LTM2883’s three power rails, making for a completely isolated and relatively simple solution.

PTM Published on: 2012-12-10
