EBX-18 Anaconda Slide 9

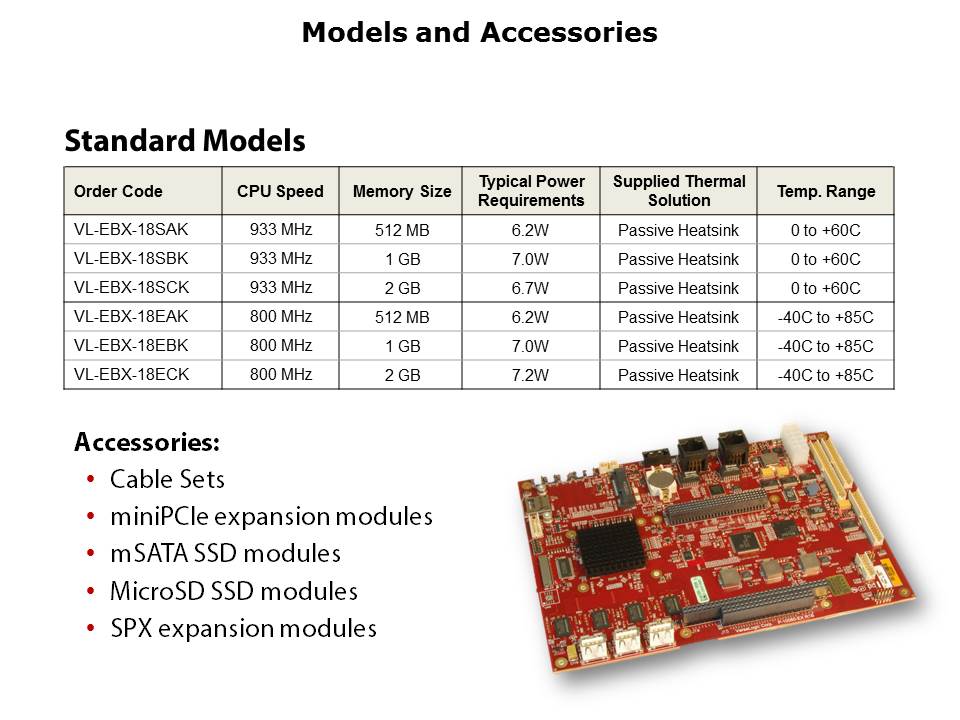

Shown here are the standard EBX-18 Anaconda models that are stocked at DigiKey. There are six different memory / temperature range options. Available in both standard (0º to +60ºC) and full industrial temperature (-40º to +85ºC) versions, the rugged Anaconda board meets MIL-STD-202G specifications for mechanical shock and vibration. Transient voltage suppression (TVS) devices on critical I/O ports provide enhanced electrostatic discharge (ESD) protection for the system. Also available from DigiKey are the common accessories to enable system development: Power supplies, cable kits, hard drives, Solid State Devices, and a number of expansion boards and modules.

PTM Published on: 2015-11-03
